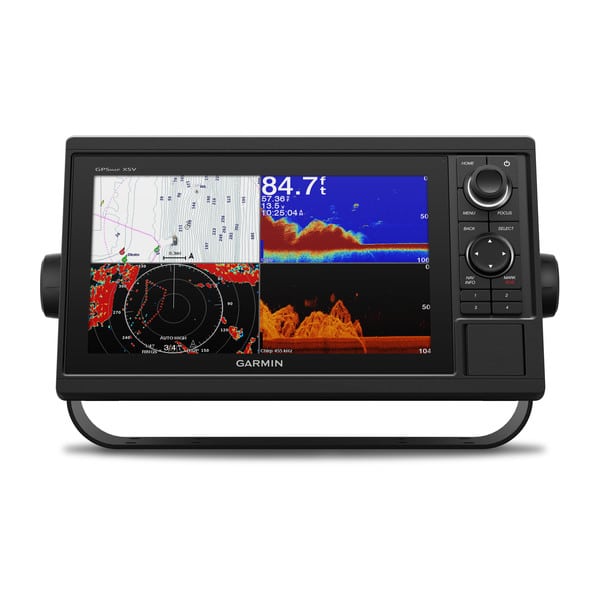

Garmin GPSMAP® 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 Solution
Model: 010-01740-21
- 10″ color display with keypad interface and multifunction control knob
- Includes GT52-TM transducer for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars
- Preloaded U.S. LakeVü g3 maps and BlueChart® g3 charts feature Navionics® data and Auto Guidance technology
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Supports Panoptix™ all-seeing sonar, which includes Panoptix LiveScope™ sonar (transducers sold separately)
Experience an advanced all-in-one solution with our 10″ GPSMAP 1042xsv keyed combo. A GT52-TM transducer is included for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars (also available without transducer). There’s also built-in support for Panoptix all-seeing sonar, which includes Panoptix LiveScope sonar and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Plus, there’s NMEA 2000® network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS and other sensors.
Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. GPSMAP 1042xsv comes with built-in Garmin 1 kW CHIRP sonar along with CHIRP ClearVü and CHIRP SideVü scanning sonars. It even supports Panoptix all-seeing sonar, which includes Panoptix LiveScope and other premium Garmin sonar modules (transducers sold separately).
Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.
LakeVü g3 inland maps and BlueChart g3 coastal charts let you experience unparalleled coverage and brilliant detail when you’re on the water. They provide industry-leading coverage and clarity with updated maps and charts that feature integrated Garmin and Navionics content plus Garmin Auto Guidance1 technology and other great features. With Auto Guidance, you can use your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow. Up to 1’ contours provide improved detail and a more accurate depiction of the bottom structure. And easy-to-use features such as Depth Range Shading and Shallow Water Shading let you view your target depth and avoid running aground.
Accessory map purchases, such as LakeVü g3 Ultra or BlueChart® g3 Vision, add even more features and detail to your maps and charts. LakeVü g3 Ultra and BlueChart g3 Vision add high-resolution relief shading, which provides an easy-to-interpret, clearer view of bottom structure than contour lines alone — plus many other chart and map-enhancing features.
Enjoy built-in ANT wireless connectivity directly to our quatix® marine watches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB® action camera from the chartplotter.
Built in Wi-Fi® connectivity gives you access to the free all-in-one ActiveCaptain® app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Built in Wi-Fi® connectivity gives you access to the free all-in-one ActiveCaptain® app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Fast, responsive built-in 10 Hz GPS and GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Instantly create personalized HD fishing maps on screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on our Garmin Connect™ online network.
To help you gain a wind-maximizing competitive edge, your chartplotter features a prerace guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
Specifications
Performance and Physical | |
Dimensions | 12.5″” x 7.3″” x 2.7″” (318 x 185 x 69 cm) |
Display size | 8.8″” x 4.9″” (224 x 125 cm) |
Display resolution | 1024 x 600 |
Display type | WSVGA display |
Weight | 4.1lbs |
Water rating | IPX7 |
Antenna | Internal or external over NMEA 2000 |
NMEA 2000® compatible | Yes |
NMEA 0183 compatible | Yes |
SiriusXM™ Weather & Radio compatible | Yes |
Power consumption | Max power usage at 10 Vdc: 32.4 W Typical current draw at 12 Vdc: 1.9 A Max current draw at 12 Vdc: 2.7 A |
Mounting options | Bail or flush |
Maps and Memory | |
Preloaded maps | BlueChart® g3 (coastal maps) and LakeVü HD g3(inland maps) |
Accepts data card | 2 SD™ cards |
Waypoints | 5,000 |
Routes | 100 |
Track log | 50,000 points; 50 saved tracks |
Chartplotter Features | |
Garmin Radar compatible | Yes |
Garmin Sonar compatible | Yes (with external black box, sold separately) |
Garmin SmartMode compatible (customizable monitor presets) | Yes |
Supports AIS (tracks target ships position) | Yes |
Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
Tide tables | Yes |
Garmin Meteor Audio System compatible | Yes |
Supports Fusion Lync compatible marine radios | Yes |
GSD™ Black Box sonar support | Yes |
GCV™ Black Box sonar support | Yes |
BlueChart® Mobile (planning) compatible | Yes |
Garmin Helm compatible | Yes |
GRID™ (Garmin Remote Input Device) compatible | Yes |
Wireless remote compatible | Yes |
Connections | |
NMEA 0183 input ports | 1 |
NMEA 0183 output ports | 1 |
Video input ports | 1 BNC |
Video output ports | None |
Wireless connectivity | Yes |
Garmin Marine Network™ ports | 2 |
Sonar Features and Specifications | |
CHIRP sonar technology | Yes (Built-in) |
ClearVü | Yes with CHIRP (built-in) |
SideVü | Yes with CHIRP (built-in) |
Dual-frequency (50/200 kHz) sonar capable | Yes |
Dual-beam (77/200 kHz) sonar capable | Yes |
Frequencies supported | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü/SideVü (260/455/800 kHz) (dependent on transducer) |
Transmit power | 1 kW traditional; 1 kW CHIRP |
Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
Bottom lock (shows return from the bottom up) | Yes |
Water temperature log and graph | Yes |
Sonar recording | Yes |
Sonar history rewind | Yes |
Transducer port | 12-pin |
What’s in the Box:
- GPSMAP 1042xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- Transom mount transducer
