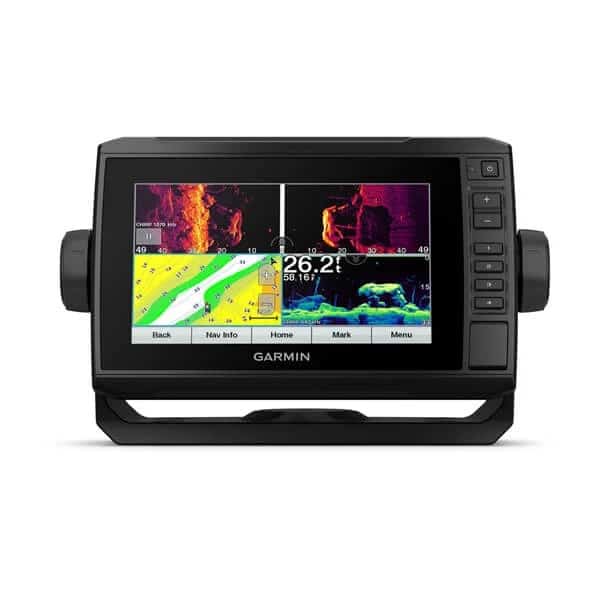

Garmin ECHOMAP™ UHD 73sv With GT56UHD-TM Transducer with preloaded LakeVü g3
Model: 010-02519-01
- See below and around your boat in incredible detail with the transducer bundle.
- Navigate any waters with preloaded LakeVü g3 inland maps.
- Share data and maps with select ECHOMAP devices on your network.
- Manage your marine experience from nearly anywhere.
- Control the most powerful trolling motor available.
- Create your own maps on the fly and tailor them to fit your needs.
The sunlight-readable 7″ touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Transducer bundle with GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7″ and 9″ models can share information — such as sonar, user data and charts — with them.
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.
Specifications
| General | |
| PHYSICAL DIMENSIONS | 9.8″” x 5.5″” x 2.0″” (25 x 13.9 x 5.1 cm) |
| DISPLAY SIZE | 6.1″” x 3.4″”; 7.0″” diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION | 400 x 800 pixels |
| DISPLAY TYPE | WVGA display |
| WEIGHT | 1.7 lbs.(0.77kg) |
| WATER RATING | IPX7 |
| POWER CONSUMPTION | 15W |
| ANTENNA | Internal or external over NMEA 2000 |
| MOUNTING OPTIONS | Bail or flush |
| RECEIVER | 5 Hz |
| GARMIN MARINE NETWORK™ PORTS | 1 Panoptix™ port |
| TRANSMIT POWER | 500 W (RMS) / 4,000 W (peak to peak) |
| Maps & Memory | |
| PRELOADED MAPS | LakeVü g3 (inland maps) |
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
| Outdoor Recreation | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN SONAR COMPATIBLE | Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
| GCV™ BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN COMPATIBLE | Yes |
| ACTIVECAPTAIN COMPATIBLE | Yes |
| Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVü | Yes with CHIRP (built-in) |
| SIDEVü | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
| SONAR RECORDING | Yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 12 |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| VIDEO INPUT PORTS | None |
| VIDEO OUTPUT PORTS | None |
| WIRELESS CONNECTIVITY | Yes |
What’s in the Box:
- ECHOMAP UHD 73sv with LakeVü g3 for U.S.
- GT56-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
