LVS34 Mounting for Forward/Down and Perspective Views

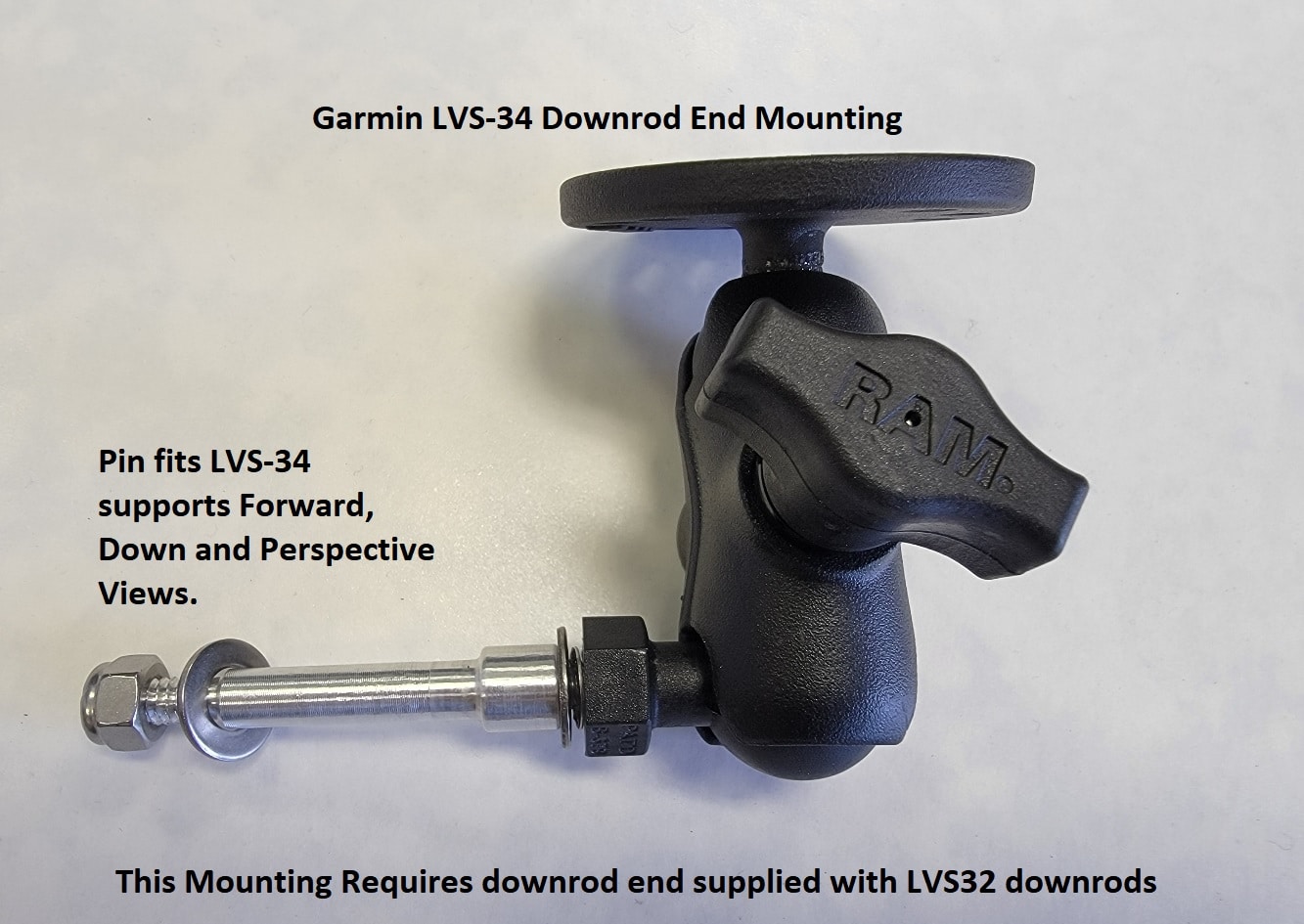

LVS34 Mounting:

This mounting for the LVS34 is suggested as it centers the transducer as much as possible under the downrod.  Centered transducers do not vibrate as much as transducers that, when mounted, leave a “Hockey Stick” appearance.

This alleviates the “Hockey Stick” in the water aspect when using the Garmin brackets.  Note that this mounting does not “click” into the various positions however it does perform better in the water when the boat is moving.

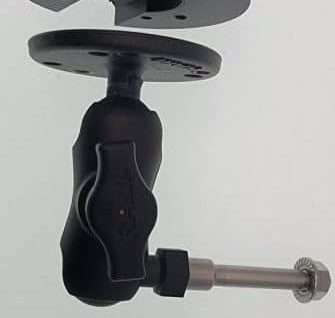

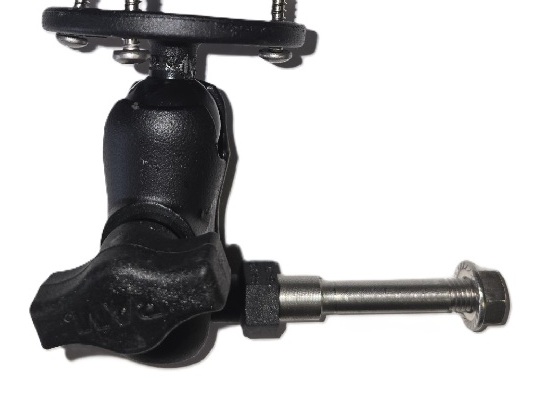

Kit includes the pin to hold the ball set and the ball set itself.  Downods should have the disk end for connection of the ball set.

Post end for  downrods can use the Garmin Lowrance or Hbird OEM brackets.
