Lund Boat, Sport Track Rail Mounting for scanning sonar.
Refer to the chart below for proper mounting bracket and baseplate selection.
Sport Track Bracket:note baseplate locations! |
Baseplate Length |
Downrod Fitment Additional Suggestions |
42 degree sport track |
If you fish standing: | |
Rebel XL |
8.25 in | |
Alaskan |
8.25 in | |
Pro Guide |
8.25 in | |

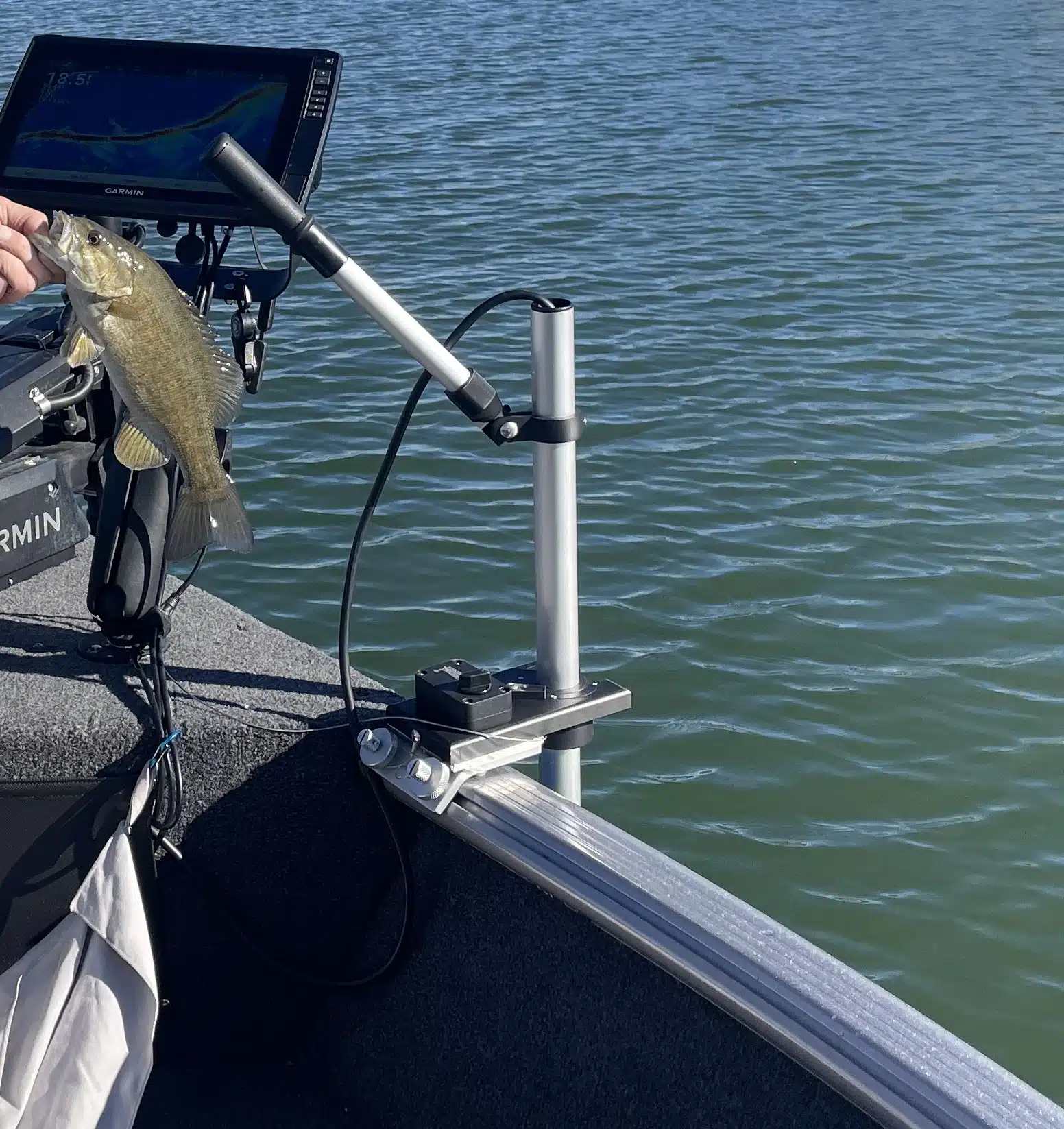

Impact XS |
8.25 in | |
Pro V Bass XS |
8.25 in | |
Pro V Musky XS |
8.25 in | |
Tyee (see note below)2022 and newer Tyee |
15in in front of console
10 inches |
Add 12in extension |
| 18in behind the console | ||
Baron |
12in (use behind driver console) | Add 12in extension |
90 degree sport track |
||
| Angler | 8.25 in | |
| Fury | 8.25 in | |
| Predator | 8.25 in | |
| Renegade | 8.25 in | |
| Adventure | 8.25 in | |
| Fisherman | 10 inch in front of console | Add 12in extension |
| 12 in behind console | ||
| Crossover & Crossover XS | 12 inch in front of console | |
| 15 in behind console | ||
| Pro V | 10 inch in front of console | |
| 15 in behind console | ||
| Pro V (2023 +) | 12 inch in front of console | |
| 15 in behind console | ||
| Pro V GL | 12 in | Add 12in extension |
VERIFY that your boat matches. This list is not a guarantee as boat models and features on them change.
Use the drawing below to ensure that the span (B) will be sufficient.
2022 Lund Tyee with the 42 degree sport track at the front should use a 10 inch baseplate.
