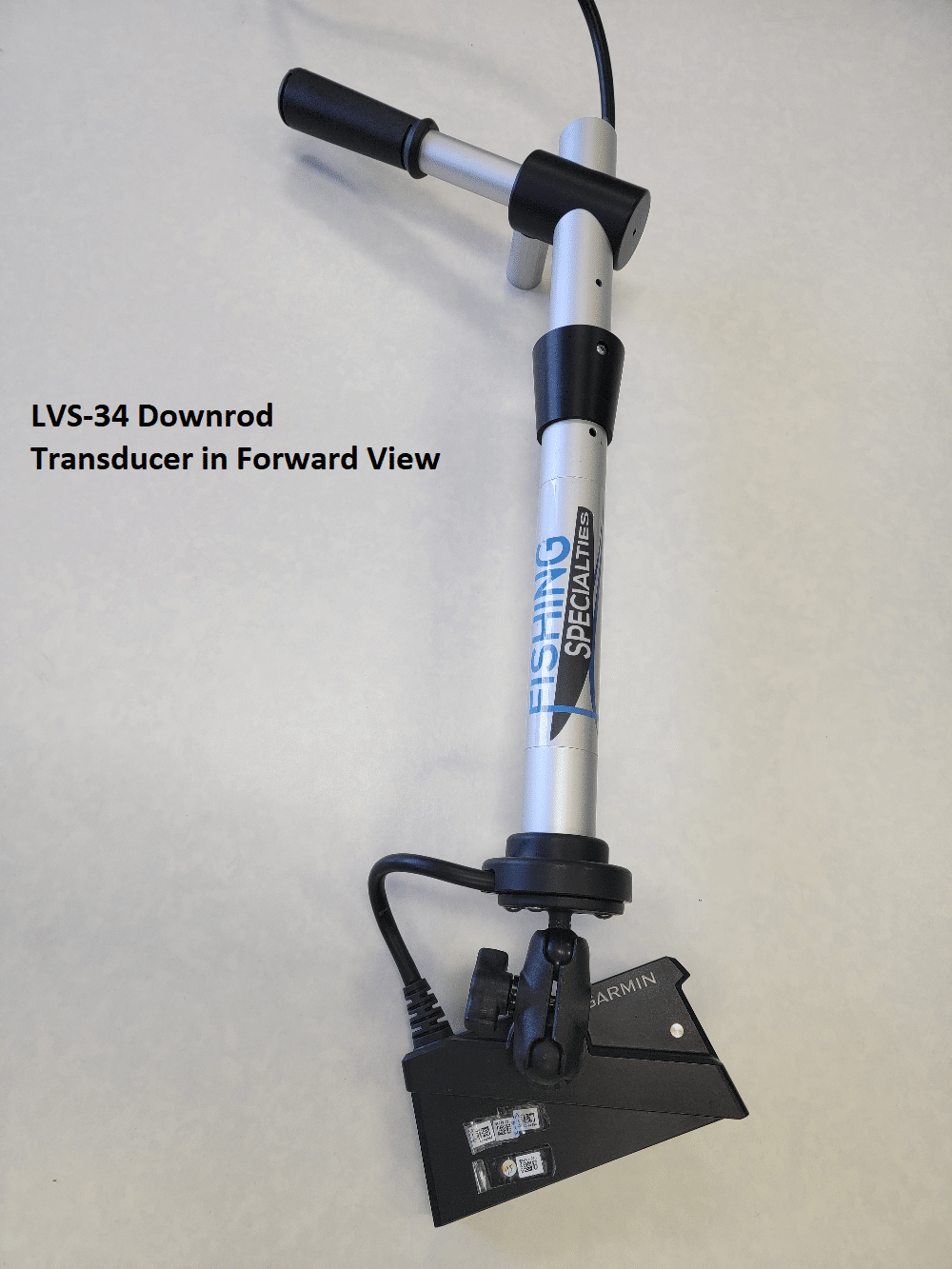

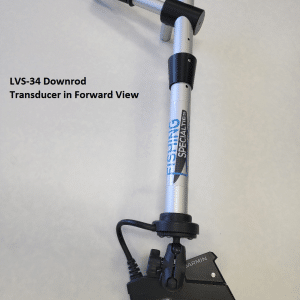

Lund Boat Bowducer assembly for Garmin LVS34 using 90 degree Sport Trak rail with Telescoping handle and 60 inch Downrod
Mounts to Lund boats with the 90 degree Sport Track system
Baseplate is 8.25 inch long anodized Aluminum.
Downrod length is 48 inches with an added 12 inch extension. This creates a full 60 inch downrod and fits the boat when used in either seated or standing postions.
Transducer mounting includes a bracket to allow all 3 positions of the transducer: Forward view, Down view, and Perspective view while maintaining the transducer as close as possible to the center line of the downrod. This centered location keeps the downrod more stable when the boat and downrod are moving through the water.
Telescoping handle is included to allow comfortable positioning of the handle for use. Handle can be made between 12 inch and 18 inches in total length.
Transducer cables run thru the center of the downrod to help protect against damage caused by hitting underwater obstacles.
Downrods are not secured to baseplates. The downrod is set into the baseplate when fishing and then lifted out and placed in the boat when travelling at high speeds. Maximum speed for the downrod in the water is approx 4mph.
