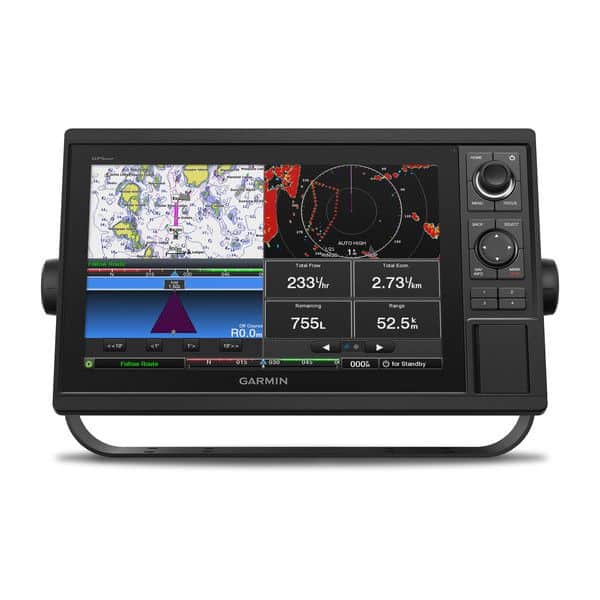

Garmin GPSMAP1222 12-inch Chartplotter Is All-in-1 Solution
PLEASE CALL TO CONFIRM AVAILABILITY
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
Garmin GPSMAP1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store™, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.
Garmin GPSMAP1222 has Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Two SD™ card slots are available with the Garmin GPSMAP1222 to provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
1Auto Guidance is for planning purposes only and does not replace safe navigation operations.
|Performance and Physical|
|Garmin GPSMAP1222 Dimensions||14.1″ x 8.9″ x 2.7″ (35.8 x 22.6 x 6.9 cm)|
|Garmin GPSMAP1222 Display size||10.3″ x 6.4″ (26.2 x 16.3 cm)|
|Garmin GPSMAP1222 Display resolution||1280 x 800|
|Garmin GPSMAP1222 Display type||WXGA display|
|Garmin GPSMAP1222 Weight||5.2 lbs|
|Antenna||Internal or external over NMEA 2000|
|NMEA 2000® compatible||Yes|
|NMEA 0183 compatible||Yes|
|SiriusXM™ Weather & Radio compatible||Yes|
|Power consumption||Max power usage at 10 Vdc: 34.8 W
Typical current draw at 12 Vdc: 2.2 A
Max current draw at 12 Vdc: 2.9 A
|Mounting options||Bail or flush|
|Maps and Memory|
|Accepts data card||2 SD™ cards|
|Track log||50,000 points; 50 saved tracks|
|Outdoor Recreation Features|
|Garmin Radar compatible||Yes|
|Garmin Sonar compatible||Yes (with external black box, sold separately)|
|Garmin SmartMode compatible (customizable monitor presets)||Yes|
|Supports AIS (tracks target ships position)||Yes|
|Supports DSC (displays position data from DSC-capable VHF radio)||Yes|
|Garmin Meteor™ Audio System compatible||Yes|
|Supports FUSION-Link™ compatible radios||Yes|
|GSD™ Black Box sonar support||Yes|
|GCV™ Black Box sonar support||Yes|
|Garmin Helm compatible||Yes|
|GRID™ (Garmin Remote Input Device) compatible||Yes|
|Wireless remote compatible||Yes|
|Sonar Features & Specifications|
|CHIRP sonar technology||Yes (with external black box, sold separately)|
|ClearVü||Yes (with external black box, sold separately)|
|SideVü||Yes (with external black box, sold separately)|
|NMEA 2000® compatible||Yes|
|NMEA 0183 input ports||1|
|NMEA 0183 output ports||1|
|Video input ports||1 BNC|
|Video output ports||None|
What’s in the Box:
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
