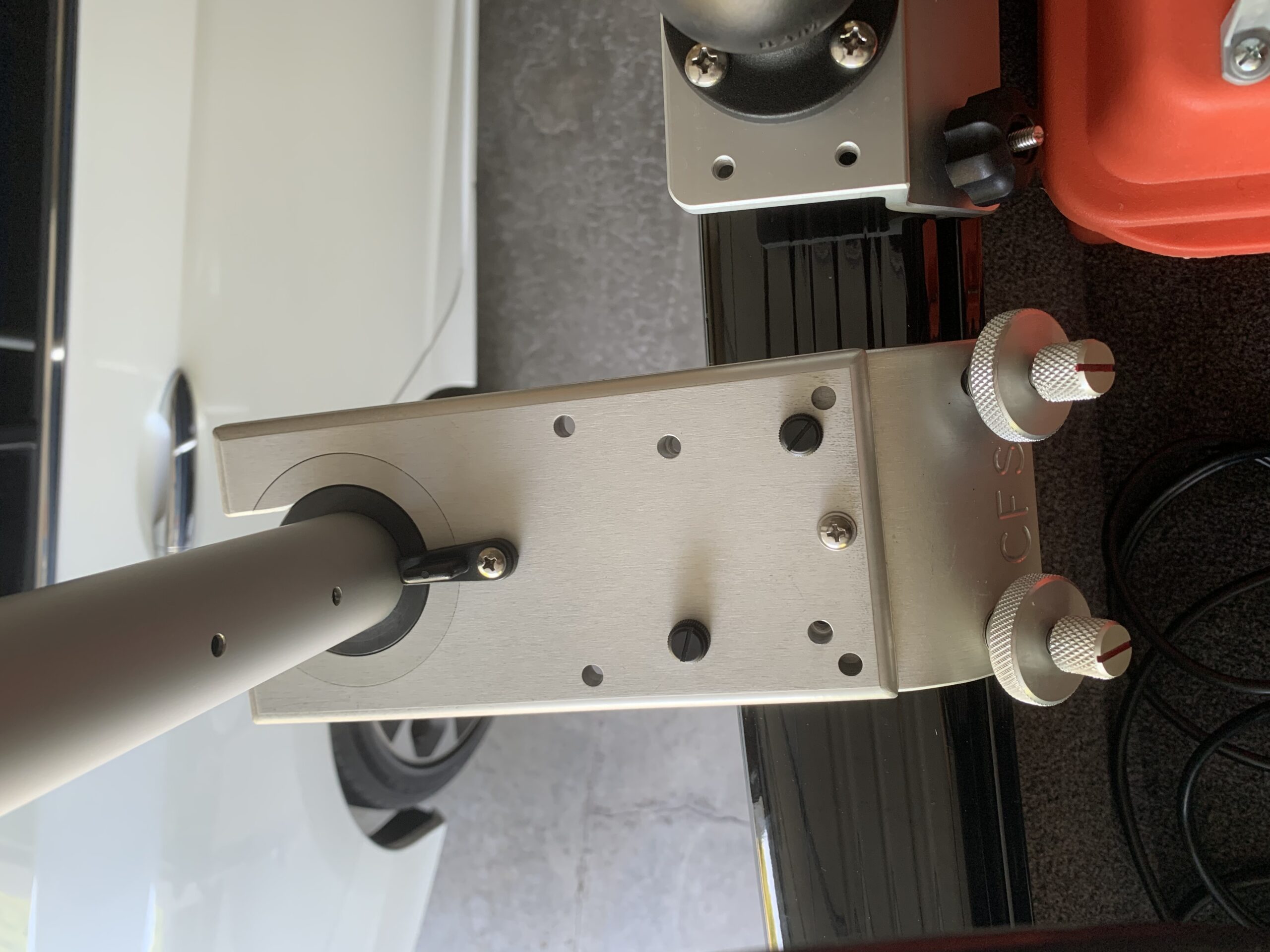

Mounting of Baseplate on the Lund Sport Track Rail system.
Gunnel widths up to 4 inches typically use a 42 degree bracket with an 8.25 inch baseplate assembly
Boats using the 90 degree sport track rail are typically using longer baseplates. Measure Gunnel width and add 1/2 inch.
Use the drawing below to ensure that the span (B) will be sufficient.
| Sport Track Bracket: Verify sport track locations for your specific boat |
Baseplate Length | Downrod Fitment Additional Suggestions |
| 42 degree sport track | If you fish standing: | |
| Rebel XL | 8.25in | |
| Alaskan | 8.25in | |
| Pro Guide | 8.25in | |
| Impact XS | 8.25in | |
| Pro V Bass XS | 8.25in | |
| Pro V Musky XS | 8.25in | |
| Tyee (see note below) | 15in infront of console | Add 12in extension |
| 18in behind console | ||
| Baron | 12in (use behind driver console) | Add 12in extension |
| 90 degree sport track | ||
| Angler | 8.25in | |
| Fury | 8.25in | |
| Predator | 8.25in | |
| Renegade | 8.25in | |
| Adventure | 8.25in | |
| Fisherman | 10in in front of console | Add 12in extension |
| 12in behind console | ||
| Crossover & Crossover XS | 12in in front of console | |
| 15in behind console | ||
| Pro V | 10in in front of console | |
| 15in behind console | ||
| Pro V (2023 +) | 12in in front of console | |
| 15in behind console | ||
| Pro V GL | 12in | Add 12in extension |
VERIFY that your boat matches. This list is not a guarantee as boat models and features on them change.
2022 Lund Tyee with the 42 degree sport track at the front should use a 10 inch baseplate.
| Weight | 6 lbs |
|---|---|
| Dimensions | 12 × 4 × 5 in |
